Место происхождения:
Китай
Сертификация:
CE Rohs SGS ISO
Номер модели:
Структура трубки Splitter PLC оптического волокна
Свяжитесь с нами
Fiber Optic Plc Splitter Tube Structure Low Insertion Loss Fttx Lan Application Wavelength 1260 To 1650nm
Description:
Features:
| 1.High reliability,stability |
| 2. With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity |
| 3.Excellent Uniformity |
|
4.wavelength :1260nm ~1650nm |
Specifications:
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Operating Wavelength (nm) | 1260～1650 | ||||||||||
| Fiber Type | ITU G657.A fiber / customer require | ||||||||||
| Pigtail Length(M) | customer Specified | ||||||||||
| Insertion Loss(dB) (S/P) | 4.1 | 7.3 | 10.5 | 13.7 | 16.9 | 21 | 4.2 | 7.8 | 11.5 | 14.5 | 17.7 |
| 3.8 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 | 3.9 | 7.5 | 11.2 | 14.2 | 17.4 | |
| Return Loss (dB) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| (S/P) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 0.8 | 1.5 | 1.5 | 2 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | ||||||||||
| Operating Temperature(℃) | -40～+85 | ||||||||||
| Storage Temperature(℃) | -40～+85 | ||||||||||
Applications:
1.(PON)
2.Local Area Networks(LANs)
3.FTTX
4.Cable Television
5.Test equipment

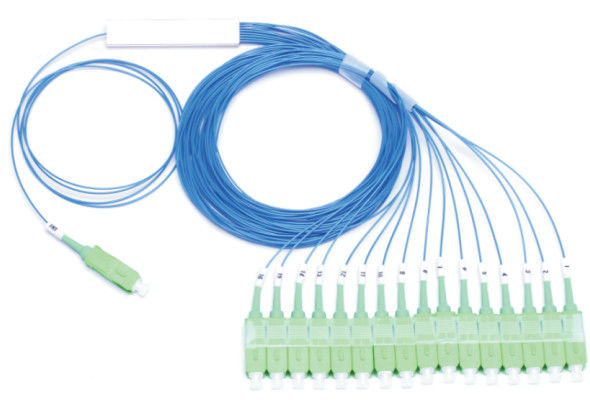

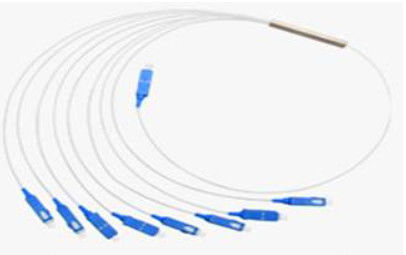

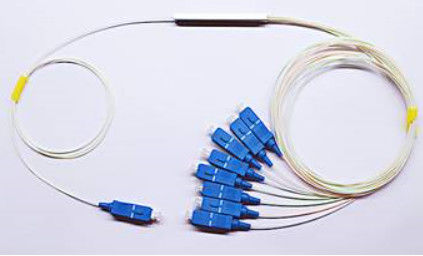

Products Pictures
